PEI SPECIAL GRADES

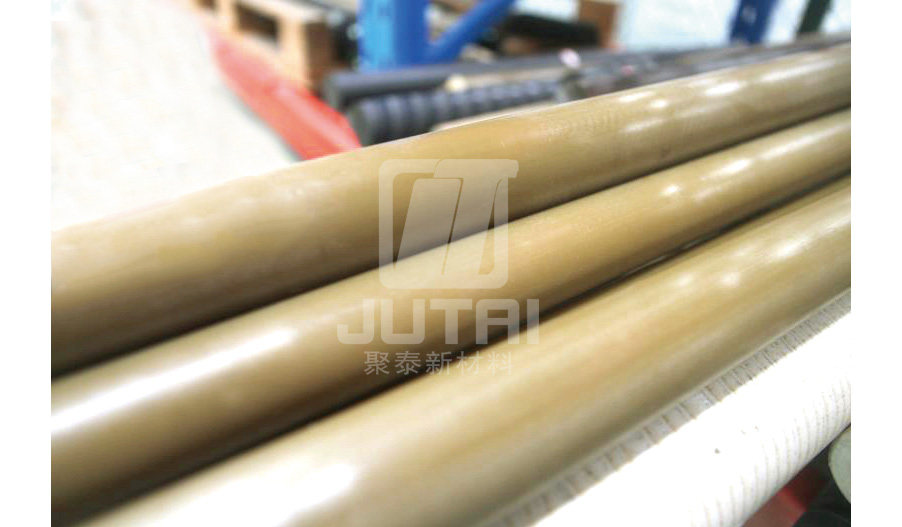

JTYPEI?GF30?is a 30% chopped glass fiber reinforced polyetherimide
(PEI) profile. PEI is an amorphous polymer with a glass
transition temperature of up to 215°C. It has mechanical properties
equivalent to PEEK, as well as excellent heat resistance,
insulation properties, and flame retardancy. Compared with
unreinforced polyetherimide (PEI) materials, this product has a
certain improvement in material strength and modulus, better
wear resistance, and a smaller thermal expansion coefficient.
The product can be used in environments with high stress, fatigue
stress or impact stress in high temperature environments, such as
auto parts or interior and exterior decoration, semiconductor
processing, precision bearings, mechanical load-bearing components,
wind power equipment or new energy battery components,
electrical system.
Product Features
JTYPEI?GF30 type pure PEI profiles:
● High tensile strength, the strength is above 100MPa.
● High bending strength, the strength is above 180MPa.
● Excellent thermomechanical load-carrying capacity, thermal deformation temperature 210℃.
● Excellent flame retardant performance and arc resistance.
● Excellent dielectric and insulation.
● Excellent dimensional stability, low thermal expansion coefficient.
● High heat resistance, can be used for a long time at 170℃.
Application Fields
JTYPEI?NA type PEI profiles can be applied:
—— Mechanical engineering industry；
—— Semiconductor and electronics industry；
—— automotive industry；
—— New energy industry.
Instructions for Use
Machined by Lathes or Milling Machine.?
Remove surface heat-treatment aged layers and the thickness of
removal layer is 0.5-1mm.
Product Storage Instructions
Placed away from light, avoiding humid, and away from oily substance.
Packed with polymeric film when not use.
Product Technical Data
The performance of JTYPEI
?GF30 series products is as follows:
|
Performance
|
Test Method
|
Unit
|
GF30
|
|
Color
|
Eye
|
/
|
Olive
|
|
Density
|
ISO?1183-1
|
g/cm3
|
1.50
|
|
Tensile Strength
|
ISO 527-2
|
MPa
|
≥160
|
|
Tensile Modulus
|
ISO 527-2
|
GPa
|
≥7.6
|
|
Elongation At Break
|
ISO 527-2
|
%
|
≥3
|
|
Notched Charpy Impact Strength
|
ISO?179
|
KJ/m2
|
≥10
|
|
Flexural Strength
|
ISO?178
|
MPa
|
≥210
|
|
Flexural Modulus
|
ISO?178
|
GPa
|
≥5.8
|
|
Rockwell Hardness
|
ISO?2039-2
|
HRM
|
≥100
|
|
Glass Transition Temperature
|
ISO?11357-3
|
℃
|
215
|
|
Coefficient of Linear Thermal Expansion 20-100℃
|
ISO 11359-2
|
10-6/K
|
≤60
|
|
Long Service Temperature
|
UL 746B
|
℃
|
170
|
|
Heat Deflection Temperature
|
ISO?75-2
|
℃
|
≥210
|
|
Water Absorption（ 23℃、Water、24h）
|
ISO?62
|
%
|
≤0.26
|
|
Flame Retardancy
|
UL?94
|
/
|
V-0
|
|
Volume Resistivity
|
IEC?61340-2-3
|
Ω?cm
|
1015-1017
|
|
Dielectric Strength
|
ASTM?D149-20
|
kV/mm
|
≥21
|
|
Dielectric Constant
|
IEC?62631-2-1
|
1
|
4.2
|
|
Dielectric Loss
|
IEC?62631-2-1
|
1
|
5*10-3
|
